CNC Laser Cutting

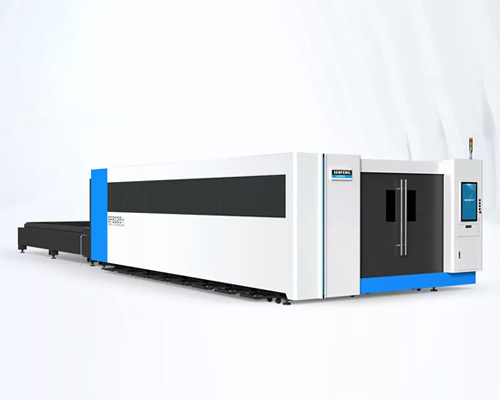

H full cover fiber laser cutting machine is a kind of metal sheet cutting fiber laser machine. Equipped with fiber laser device of power from 1.5kw to 6kw. And the working area is from 3050mm*1530mm to 6050mm×2530mm. For more details or fiber laser cutter price, just contact us by whatsapp:+91 96000 21022 or send inquiry to steelmanchennai@gmail.com
Technical Parameters of Fiber Laser Cutting Machine
| Model | SF3015H / SF4020H / SF6020H / SF6025H |
| Working Area(mm) |
3050*1530（Independent distribution cabinet）
4050*2030/ 6050*2030/ 6050*2530
|
| Laser Power(KW) | 1.5/2/3/4/6 |
| Maximum Speed(m/min) | 130 |
| Maximum acceleration(G) | 1.0 |
| X/Y Axis positioning accuracy(mm/m) | ±0.05 |
| X/Y Axis repeated positioning accuracy(mm) | ± 0.02 |
