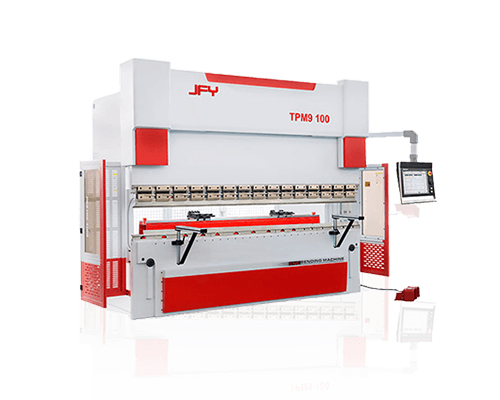

CNC Bending
- Machine body is optimized by finite element design to ensure high strength and high rigidity during operation.
- Compared with traditional CNC bending machines,the frequency of the Y-axis movement is 35% higher.
- A broad range of options and bending tools allow the processing of large and complex workpieces.
- High-performance CNC Control TJS-90 as standard configuration ensures maximum workflow efficiency and operating convenience.
- Push-pull quick clamping as a standard configuration avoids part interference when bending at a small angle.
Parameter
Main Specficaion | Unit | 60T | 100T | ||
---|---|---|---|---|---|
Modal | TPR9 060/2550 |
TPR9 100/3100 |
TPR9 100/4100 |
||
Bending Force | kN | 600 | 1000 | 1000 | |
Bending Length | mm | 2550 | 3100 | 4100 | |
Column Distance | mm | 2150 | 2700 | 3700 | |
Throat Depth | mm | 350 | 420 | 420 | |
Stroke of Ram | mm | 215 | 265 | 265 | |
Closed Height | mm | 530 | 530 | 530 | |
Speed | Approaching | mm/s | 200 | 250 | 250 |
Working | mm/s | 20 | 20 | 15 | |
Return | mm/s | 200 | 250 | 150 | |
Main Motor Power | kW | 6 | 13.2 | 10.8 | |
Oil Tank Capacity | L | 300 | 400 | 550 | |
Backgauge | Precision | mm | ±0.10 | ±0.10 | ±0.10 |
Stroke | mm | 500 | 500 | 500 | |
Speed | mm/s | 400 | 400 | 400 | |
Power | kW | 1.5 | 1.5 | 1.5 | |
Dimension | mm | L:3400 | L:3950 | L:4950 | |
W:1500 | W:1700 | W:1700 | |||
H:2510 | H:2700 | H:2710 |
Main Specficaion | Unit | 150T | 225T | |||
---|---|---|---|---|---|---|
Modal | TPM9 150/3100 |
TPM9 150/4100 |
TPM9 225/3100 |
TPM9 225/4100 |
||
Bending Force | kN | 1500 | 1500 | 2250 | 2250 | |
Bending Length | mm | 3100 | 4100 | 3100 | 4100 | |
Column Distance | mm | 2700 | 3700 | 2700 | 3700 | |
Throat Depth | mm | 420 | 420 | 420 | 420 | |
Stroke of Ram | mm | 265 | 265 | 265 | 265 | |
Closed Height | mm | 530 | 530 | 530 | 530 | |
Speed | Approaching | mm/s | 180 | 180 | 160 | 160 |
Working | mm/s | 14 | 14 | 12 | 12 | |
Return | mm/s | 180 | 180 | 160 | 160 | |
Main Motor Power | kW | 13.2 | 13.2 | 16.7 | 16.7 | |
Oil Tank Capacity | L | 400 | 550 | 400 | 550 | |
Backgauge | Precision | mm | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
Stroke | mm | 500 | 500 | 500 | 500 | |
Speed | mm/s | 400 | 400 | 400 | 400 | |
Power | kW | 1.5 | 1.5 | 1.5 | 1.5 | |
Dimension | mm | L:3970 | L:4970 | L:3980 | L:4980 | |
W:1720 | W:1720 | W:1960 | W:1960 | |||
H:2700 | H:2700 | H:2850 | H:2850 |
